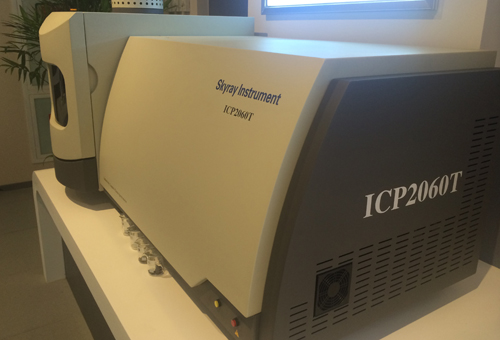

ICP2060T

ICP 2060T Sequential Inductively Coupled Plasma Emission Spectrometer is designed to measure major, minor and trace elements in various samples with outstanding performance. It was widely chosen in different industries for its superior optical resolution, high level of automation, reliable free running RF system as well as excellent analytical precision and accuracy. ICP2060T was widely applied in various fields ranging from rare earth, geology, metallurgy, chemistry, environmental protection, clinical medicine, petroleum products, semiconductors, foods, biological samples, criminal science, to agricultural research, etc.

Inductively Coupled Plasma Emission Spectrometer

Over 70 elements can be measured Fast analysis, 5-8 elements per minute; Excellent detection limits, at ppb level for most elements Wide linear dynamic range, reaching 6 orders of magnitude, from ppb to percentage; Lower gas consumption; Each argon gas cylinder can be used for 8 hours; Advanced optical design with a fully illuminated holographic grating, with spectral interference correction and high light throughput for improved detection limits

Specifications

ICP2060T Specifications

Size 1.5m×0.8m×0.8m
Frequency 27.12MHz
Frequency stability < 0.05%
Couple method Auto match
Output power 800W ~1600W, continuously adjustable with power efficiency more than 65%
Output power stability ≤0.05%
Induction coil ID 25mm×3, equipped with three concentric quartz torch tubes of ED 35mm (ID: internal diameter; ED: external diameter)
Spray chamber Scott double pass spray chamber
Optical type Czery turner
Focal length 1000mm
Grating specification huge holographic grating with 3600L/mil or 2400 L/mil and 80 mm×100mm of ruling area
Resolution ≤0.015nm (3600 line grating), ≤0.030nm (2400 line grating)
Wavelength range 195~500 nm for 3600 line grating, 195~800 nm for 2400 line grating.
Photomultiplier tube specification R212/R928
Negative high voltage (-50 ~ -1000) V
Circuit measuring range (10-12 ~ 10-4) A
Signal acquisition VF conversion
