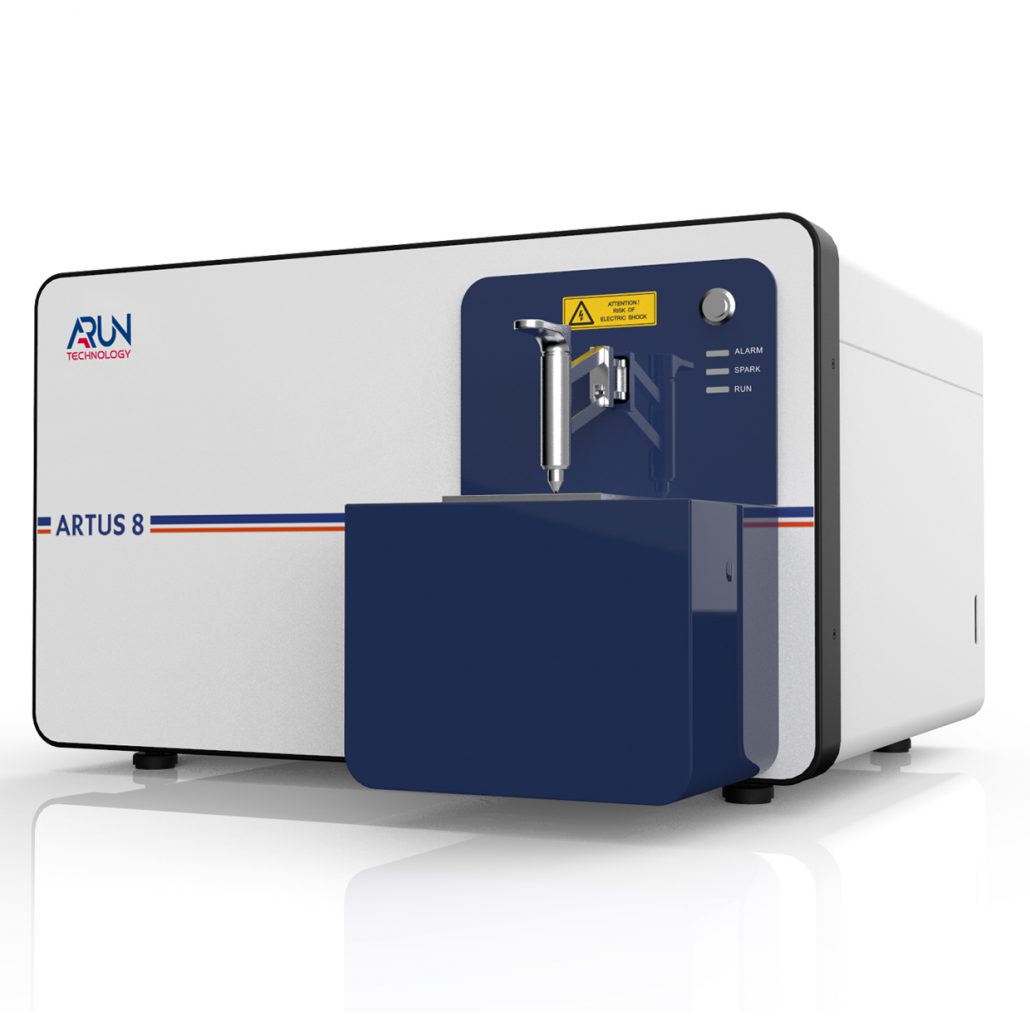

Artus 8

The ARTUS 8 fulfils the requirement of providing fast, precise and accurate analyses for the perfect melt. It is one of the most powerful and reliable spectrometers offering a complete range of analytical programs including cast irons, steels with carbon and nitrogen, and all alloying elements and their traces needed for treatment.

It offers all the advantages of a flexible and versatile CCD spectrometer

It even challenges some applications with classical photomultiplier systems, which are still the benchmark in high-end OES.

Quality Control and Assurance are essential to making your business successful. The ARTUS 8 is the ideal companion for incoming material, in-process testing, independent laboratory testing and final quality inspection. It is widely used in the steel manufacturing, cookware, automotive, aluminum extrusion, cast iron and carbon steel industries.

Risks such as material mix-ups and machinery damage are reduced thanks to adapters which detect and analyze oddly shaped samples and small pieces and the optimizable grade library which visually displays non-compliance alloy specifications.

Specifications

Artus 8 Specifications

Optical System Paschen—Runge
Detector CMOS
Wavelength Range 120-680nm (Ultimate)
174-680nm (Standard)
212-680nm (Visible)
Power Supply Line input 90 or 260 volts AC 50-60 Hz
EMC IEC61000-4-2 IEC61000-4-4 IEC61000-4-5
Working Temperature 10° to 35°C
Operating Humidity 20-80%
Argon Purity 99.998% or 99.999% purity
Argon Flow When burning—3L per minute Standby 0.1L per minute
Dimensions 72.1 x 44 x 77 cm
Weight 80kg
Maximum Excitation Power 400VA
Optical Source Type 50VA
Discharge Frequency 400Hz maximum
Discharge Current 150A maximum
Spark Stand Aperture 12mm
