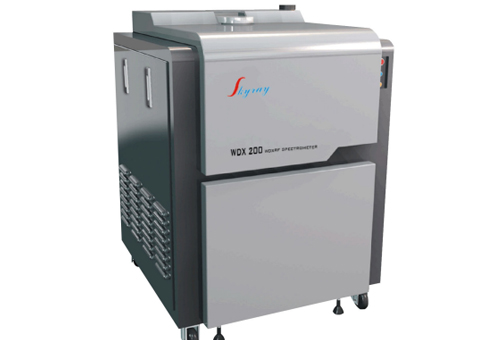

WDX200
WDX-200 Small Multi-channel X-Ray Fluorescence Spectrometer features for 10 fixed light diffraction channels, 10 elements being analyzed simultaneously. These 10 elements are arbitrary from Na to U as required by the users. The instrument, an ideal quality control choice for large and medium-sized enterprises, is widely used in cement, steel, powder metallurgy, coal, petroleum, caoline, corhart, environment protection industries and so on. WDX-200 is a tailor-made high-end analytical instrument for cement industry, meeting requirements of quality control and elemental analysis of the industry. Every technical specification has reached the advanced standard of that of the like international products.

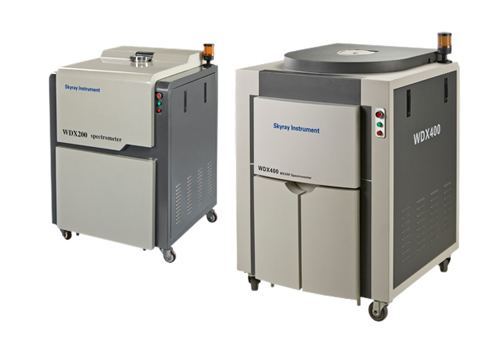

WDX-200 Small Multi-channel X-Ray Fluorescence Spectrometer
Self-developed X-ray Fluorescence analysis system is in seamless connection with DCS system or QCX system built on the OPC SERVER and OPC framework. The configuration can be changed to QCS server. All Chinese operating system makes the instrument easy to manipulate. The all-spectrum analytical technique is created by us. It traces and corrects every spectrum in real time, which greatly improves the repeatability and stability of quantitative analysis.
Specifications
WDX200 Specifications
| Temperature control accuracy of constant temperature chamber | setting value36°C士0.1°C. |
|---|---|
| X-ray tube | 400W thin Be end window X-ray tube made by Varian company. Rh anode (optional) |
| High voltage supply | 200W (50KV4mA). 12-hour tube voltage & tube current stability: better than 005 %. |
| Measurable elements | 10 arbitrary elements from Na to U. |
| Flow gas system | high sophisticated flow density stabilizer with stability up to ±0.003 KPa. |
| AC220V power supply | 1KVA AC purified stabilized voltage power supply |
| Analysis accuracy | on 一1(24 hours, per cent) ≤0.05 ％ |
| Test time of single sample | （including the time of changing the sample and pumping the vacuum）≤3 － 5 minutes |
