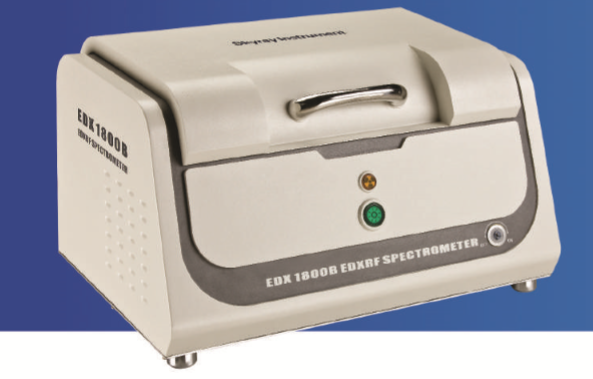

EDX1800B
EDX1800B X-Ray Fluorescence Spectrometer is specifically designed for RoHS analysis and quality control. Manufacturers seeking compliance with RoHS / WEEE directive can quickly and non-destructively screen their products for Hazardous substances and ensure the safety of their products.
Faster Quality Control with accurate RoHS and Plating Thickness Analysis
Used in different application fields like RoHS testing, Mining and alloy analysis, Measurement of electroplating and plating thickness, Precious metal such as gold, platinum, silver and other metals.
Automatic collimators and filters, Built-in SNE (Signal to Noise Enhancer), Intelligent RoHS analytical software, Optional Plating-thickness analysis software, Variable non-linear regression
Specifications
EDX1800B Specifications
| Measurable elements | Sulfur(S) to Uranium(U) |
|---|---|
| Limit of detection (LOD) | as low as 1 ppm |
| Measurement range | ppm to 99.99% |
| Excellent repeatability | 0.1% |
| Stability | 0.1% |
| Ambient temperature | 15°C to 30°C |
| Power supply | AC 220V±5V or AC 110V±5V |
| Energy resolution | 160±5eV |
| Chamber size | 439mm x 300mm x 50mm |
| Instrument size | 550mm x 410mm x 320mm |
| Instrument weight | 45kg |
