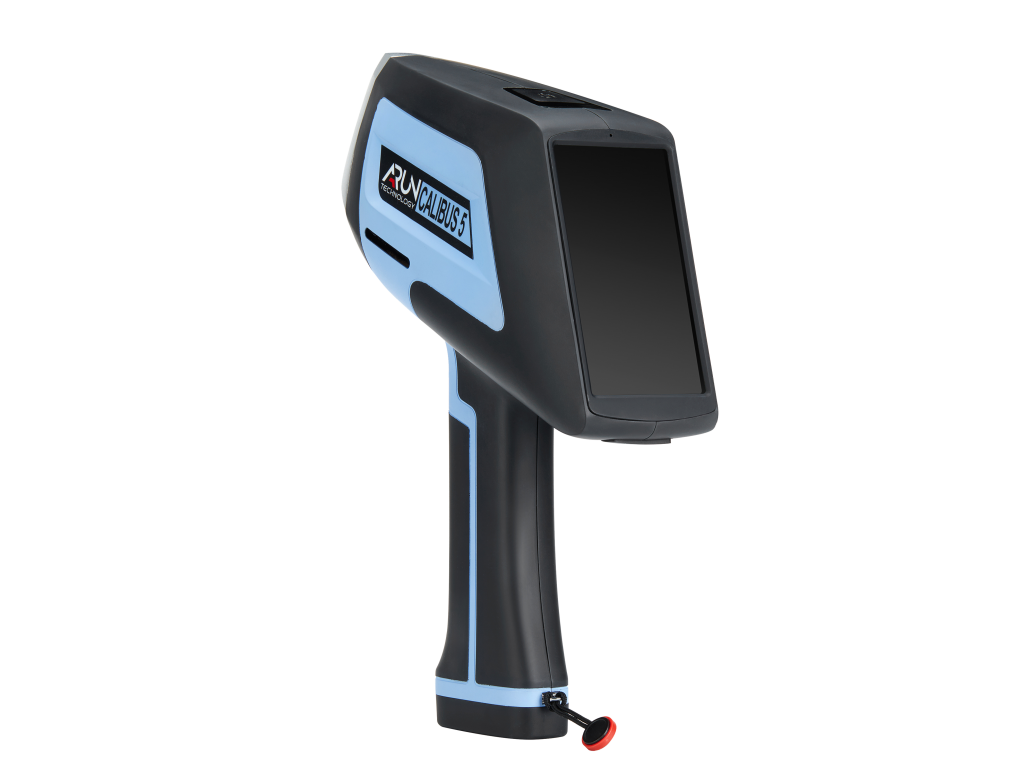

Calibus
The CALIBUS is the latest in a series of laser-induced breakdown spectrometers (LIBS) from ARUN Technology. It is the first and only CMOS-based LIBS analyser in the market to measure carbon in ferrous. The new CALIBUS is an ideal analytical solution for QA/QC, metallurgical manufacturing and machining, petrochemical industries, mining, scrap metal and recycling.
Innovative Spectrometers For Elemental analysis
The CALIBUS has a wide spectrum range of 190nm—800nm. This range can detect more than 20 elements including C, Li, Be, B, Na, Mg, and Si.
The detection speed is fast! Analytical results can be shown in 1 second and efficiency is 10-30 times improved in comparison to other available conventional portable OES spectrometers in the market.
Because of the integrated CMOS technology, the LIBS is able to provide a higher precision test data. The universal curve function makes it easy to just pick up and start testing straight away.
Specifications
Calibus Specifications
| Number of Models | 3 |
|---|---|
| Laser Source | Pulse laser Laser pulse 50Hz Laser wavelength 1064nm |
| Wavelength Range | 190 –800nm |
| Number of Optical Cells | 3 |
| Sensor | CMOS |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% - 95% |
| Weight | Approximately 2kg |
| Dimensions | 92mm x 295mm x 245mm |
| Operating System | Android |
| Argon System | Flush |
| Analysis Time | 1 second |
| Anti-Combustion | Positive pressure combustion-proof |
| Certification/Compliance | IP56 |
| Display Screen | 5” colour touch screen |
| IEC | IEC61000-4-2，IEC61000-4-3，IEC61000-4-4， IEC61000-4-5，IEC61000-4-11 |
| Element Analysis Capabilities | C, Si, Mn, Cr, Ni, Mo, Cu, V, Ti, Al, Be, B, Li, Na, Pb, Sn, Fe, Cu, Mg, Zn, Co and more! |
| Battery | A single battery operates 6-10 hours depending on the environmental temperature. Two rechargeable lithium batteries are included. |
