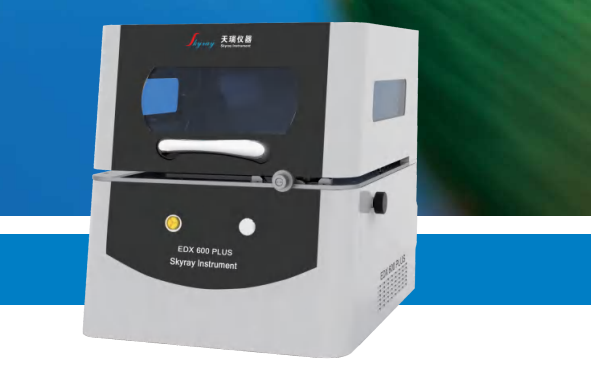

EDX 600 Plus
EDX 600 PLUS is specially developed by Skyray Instrument Co., LTD for coat thickness measurement utilizing bottom illuminating technology derived from experience accumulated over the years. It features easy and fast measurement, none use of liquid nitrogen, and elimination of sample pretreatment. Known for its accurate thickness detection of various coatings and metal ion concentration for electroplating solutions in industrial electroplating, chemical plating and hot plating, it helps enterprises to accurately calculate cost and control product quality. The instrument is widely used in photovoltaic industry, hardware and sanitary ware, electronics, aerospace, magnetic materials, automobile industry, communication industry and so on.
Ion Concentration Analyzer for Electroplating Solutions
Used in different application fields Electroplating, Hardware and sanitary ware, Electronics & Electrical Appliances, Magnetic materials Aerospace New Energies, Automobile making, Precious metal plating
Specifications
EDX 600 Plus Specifications
| Range of Measurable Elements | 13 Al~ 92 U can be measured |
|---|---|
| Simultaneous detection of coatings and elements | Can simultaneously analyze more than 5 layers of coating, and measure 24 elements |
| Detection limit | Metal coating analysis as thin as 0.005 PM |
| Range of Thickness | Coating thickness to be analyzed is generally within 50 PM (varies for different material) |
| Standard deviation of thickness test | < 5% |
| Range of content | 0.1%--99.9% |
| Accuracy of content | < 0.5% |
| Content stability | Repeatability of multiple measurements is 0.5% |
| Detection time | 5-40s |
| Collimator (standard configuration) | 0.2 mm; optional 0.1 * 0.2 mm; 0 to 0.15 mm; 00.3mm and other aperture size |
| Minimum measurable diameter | 00.1mm |
| Dimension | 497 (W)x427 (D)x468 (H)mm |
| Sample chamber size | 415(W) X374 (D) x218(H)mm |
| Temperature and Humidity of Operating Environment | 0-30 °C, humidity ≤70% |
| Working Power | AC 220±5V |
