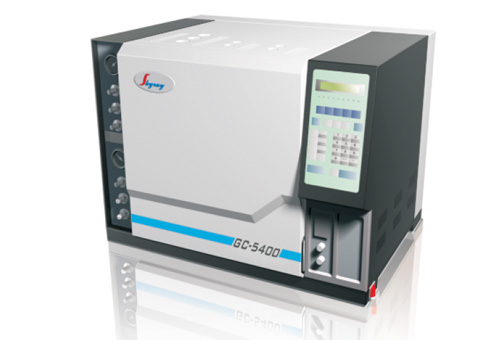

GC5400
The intelligent Gas Chromatograph GC-5400 presented by Skyray Instrument Inc. incorporates advanced modern manufacturing technologies with years of experience in research and development. It is manufactured under a quality system conforming to international standards. The multi functional, easy-to-use and remotely controllable gas chromatograph provides superior performance for all applications.
The Intelligent Gas Chromatograph
Advanced Microcomputer Control System With adoption of advanced control technology, the microcomputer temperature control system is highly precise (less than ±0.05℃), reliable and anti-interfering. The system is divided into 5 independent heated zones with maximum temperature up to 400℃. Settable ultimate temperature and overheat protection mechanism ensure a safe operation of the instrument.
Specifications
GC5400 Specifications
| Temperature Control, range and control objects | 7°C ~ 400°C above room temperature, increment 1°C Column compartment, detector, thermal conductivity cell, injector, accessories |
|---|---|
| Temperature ramps | 5-stage |
| Temperature ramp rate | 0. 1°C ~ 40°C/min, increment 0. 1°C |
| Constant Temperature Retention time | 0 ~ 655 min, increment 1 min |
| Hydrogen Flame Ionization Detector (FID) Sensitivity | M ≤ 1 ×10-11 g/s（C16） |
| Best testing results | M ≤ 8 ×10-12 g/s（C16） |
| Noise | ≤5×10-14 A |
| Drift | ≤6×10-13 A/h |
| Linear dynamic range | ≥ 106 |
